The sample site that comes out of the box with Sitecore is still running on XSLT renderings and Web Forms sublayouts. Maybe you just finished the Sitecore Developers eLearning Course and want to play with Sitecore and MVC some more, or you're starting your first Sitecore project and want something to do on the side. Either way, converting the built-in Sitecore sample site to MVC is a good starting exercise. In this blog post I'll cover how to do just that.

Install Sitecore

The first step is to install Sitecore. I prefer to use Sitecore Instance Manager (SIM), but the installers on dev.sitecore.net work great too.

For this tutorial I'll be using Sitecore 8.2 Update-2, but these steps apply for all versions from Sitecore 8.0 up. Throughout the tutorial I'll be assuming you called your Sitecore instance SampleMvc and set the hostname to samplemvc.localhost.

Create Visual Studio Solution

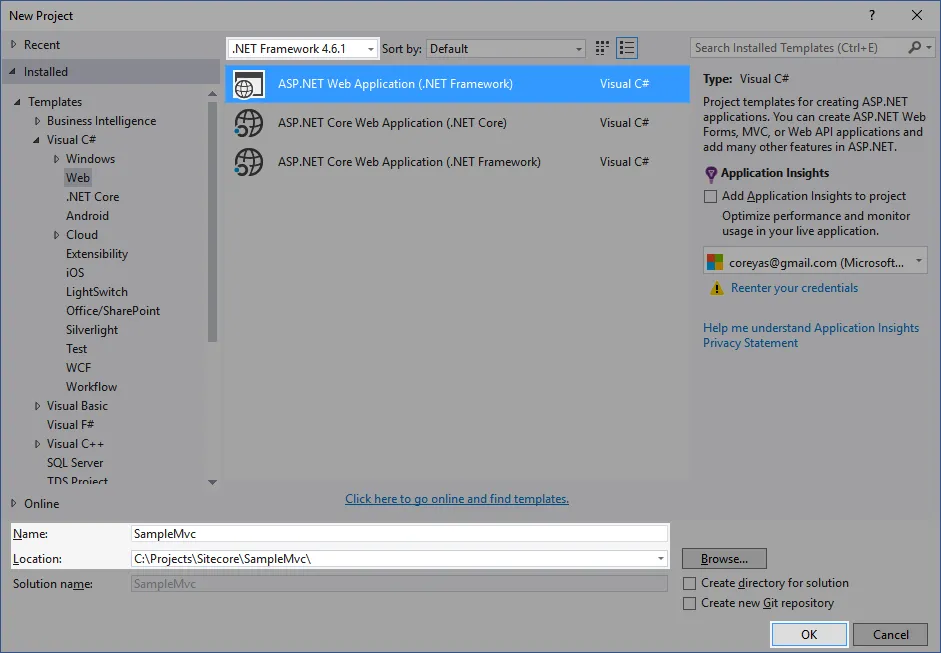

Create a new ASP.NET Web Application in Visual Studio as I've done below. Target .NET Framework 4.6.1.

New Project

Create an Empty project and select to add folders and core references for MVC.

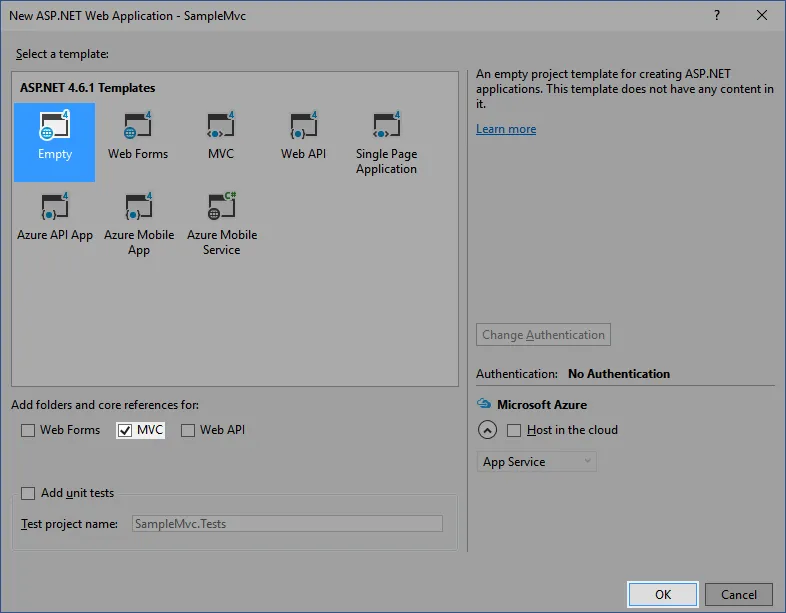

Empty Project with MVC References

Project Clean Up

Delete the following files/folders in your project:

  • App_Data
  • App_Start
  • Global.asax

Sitecore comes with a Global.asax and it's considered best practice not to change it, so delete it. The code in App_Start is not needed.

Open the Properties for the following files and set Build Action to None:

  • Views\web.config
  • Web.config

Sitecore comes with a Web.config and it's considered best practice never to modify it directly. Visual Studio needs a web.config file for Intellisense to work properly, so we'll leave it in the project but instruct Visual Studio not to copy it to the output folder on build/publish.

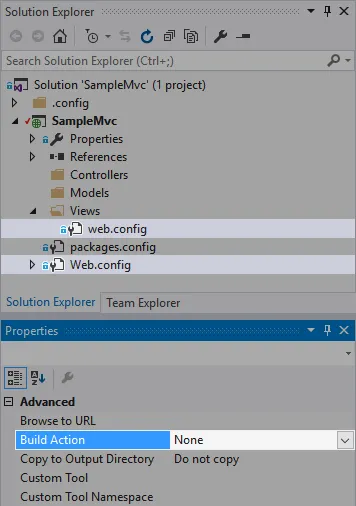

web.config Build Action None

Create Publish Profile

To deploy your Sample MVC code to Sitecore you need a publish profile. Right click on your Visual Studio project and click Publish.... Select Custom for Select a publish target and enter a profile name. I typically name my publish profiles after their project, so I put SampleMvc.

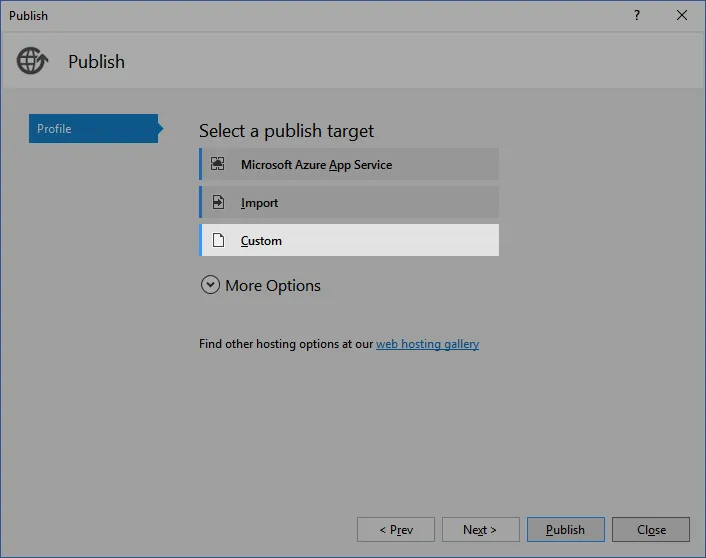

New Custom Profile

For the Publish method select File System. Click ... next to the Target location.

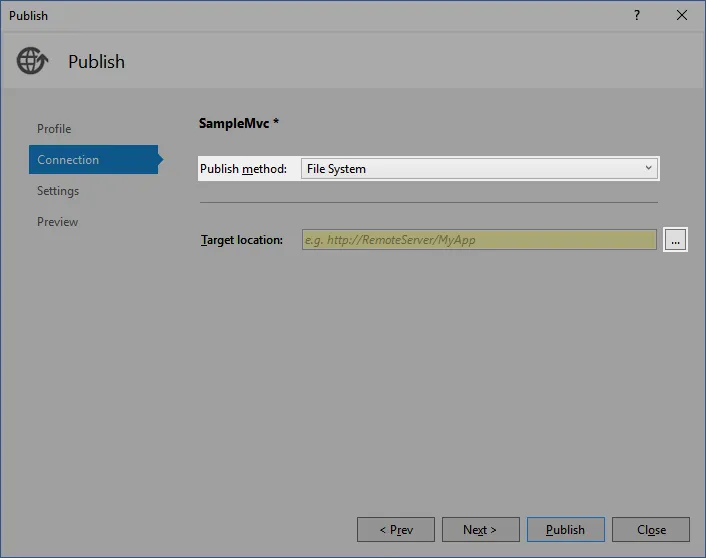

Publish Method

Click Local IIS in the Target Location box and select your Sitecore instance under IIS Sites. Click Open and then click Next.

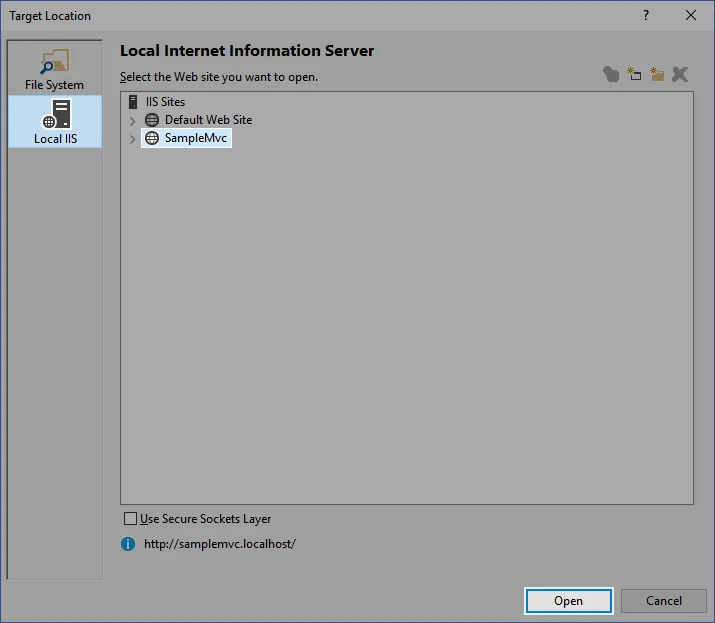

Target Location Local IIS

On the final screen select Debug as the Configuration. Click Close and click Yes to save your publish profile.

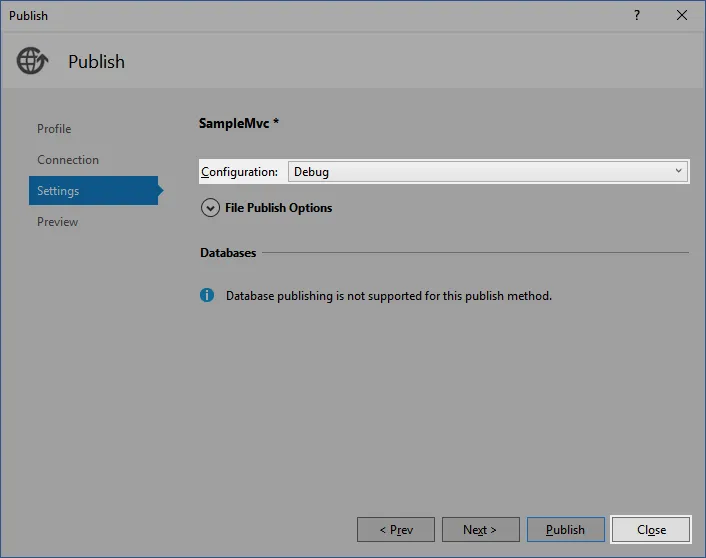

Publish Configuration

Add Sitecore NuGet References

We will need to reference a few Sitecore dlls in this project. Instead of copying those dlls from the Sitecore installation into the project, we'll get them from NuGet.

Add Sitecore NuGet Source

To get Sitecore NuGet packages you have to add the Sitecore NuGet feed as a source in Visual Studio. In Visual Studio click Tools in the menu bar and click Options. In the Options window search for NuGet and click Package Sources. Add a new package source as I've done below.

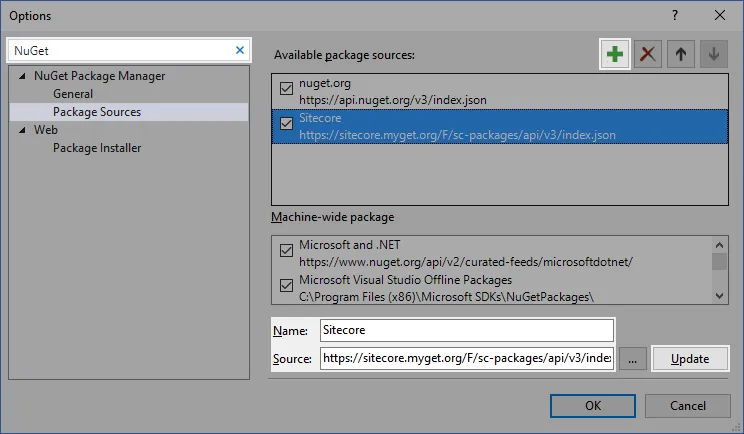

Add Sitecore NuGet Package Source

You can read more about the Sitecore NuGet feeds on the Sitecore Documentation.

Add References to Project

Right click on the SampleMvc project in Visual Studio and click Manage NuGet Packages.... Select Sitecore as the Package source in the top right corner. Click the Browse tab and install the following three NuGet packages:

  • Sitecore.Kernel.NoReferences
  • Sitecore.Mvc.NoReferences
  • Sitecore.Mvc.Analytics.NoReferences

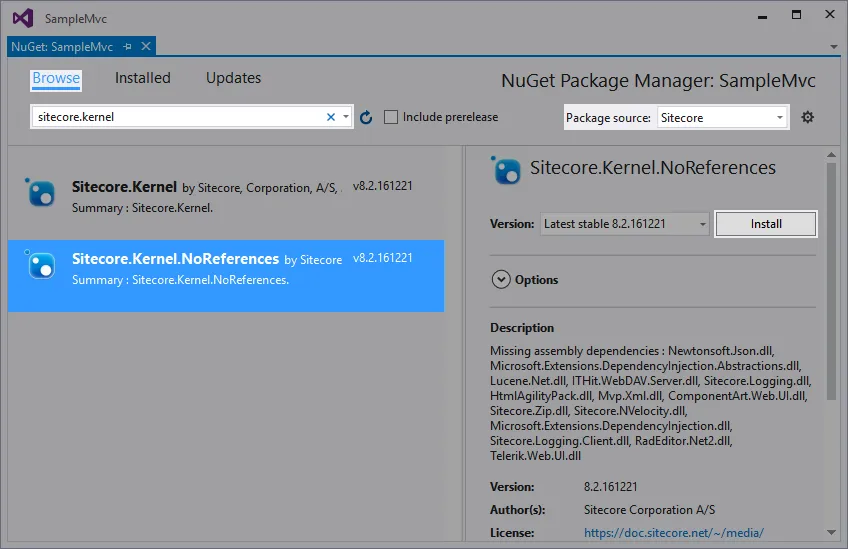

Sitecore.Kernel.NoReferences NuGet Package

Convert the Layout

Create the MVC Layout

Log in to the Sitecore backend at http://samplemvc.localhost/sitecore and open up the Content Editor.

Expand the Layout node, click on Layouts, and click the MVC Layout button. Name the layout Sample MVC Layout and click Next. Click Next again to create the layout under Layouts. Click Create to create the Sample Layout file under /Website/Views/Shared.

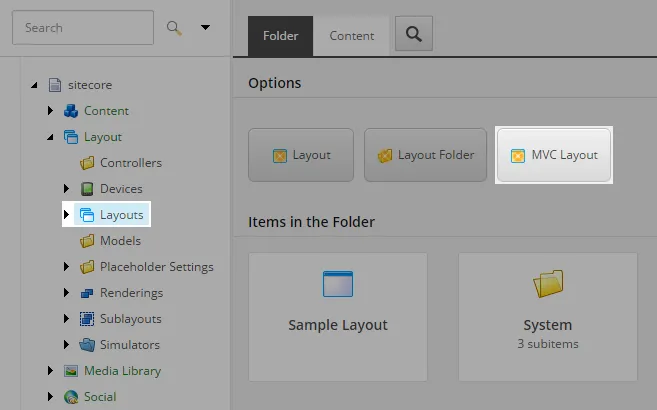

Create MVC Layout

Switch back over to your solution and create a folder called Shared under Views. Right click on the folder and click Open Folder in File Explorer. Now navigate to the web root for your Sitecore install (e.g., C:\inetpub\wwwroot\SampleMvc\Website) and grab the layout you just created from Views\Shared. Copy it into the solution folder you opened.

In Visual Studio click the Show All Files icon at the top of Solution Explorer. Right click on Sample MVC Layout.cshtml and click Include in Project. Click Show All Files at the top of Solution Explorer again to hide the detritus.

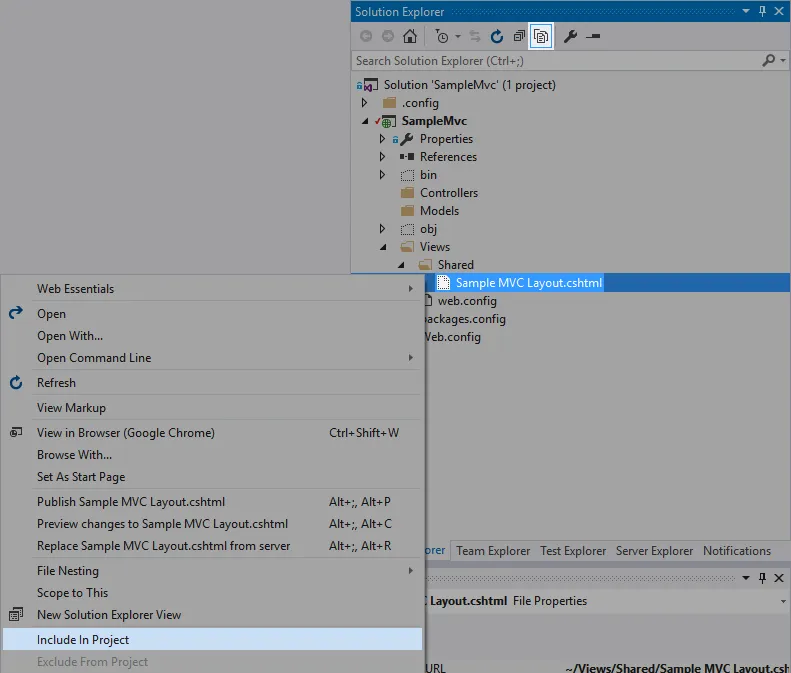

Show All Files

Convert the Sample Layout to MVC

Navigate back to the web root for your Sitecore install (e.g., C:\inetpub\wwwroot\SampleMvc\Website) and open layouts\Sample layout.aspx in your favorite text editor. This is the Web Forms layout referenced by the Sample Layout that comes with Sitecore out of the box. Copy and paste the contents into Sample MVC Layout.cshtml in your solution. You can safely delete this file out of your web root now.

Delete the page directives at the top of the layout. Page directives are not used by Razor.

<%@ Page Language="c#" Inherits="System.Web.UI.Page" CodePage="65001" %>
<%@ OutputCache Location="None" VaryByParam="none" %>

In place of the page directives, add the following lines:

@using Sitecore.Mvc
@using Sitecore.Mvc.Analytics.Extensions

Now delete the <sc:VisitorIdentification runat='server' /> tag at the end of the <head> tag. Replace it with @Html.Sitecore().VisitorIdentification(). Instead of user controls, Sitecore MVC uses HTML helpers accessed from the @Html.Sitecore() function to output HTML in views.

Since we're not using Web Forms anymore, the site doesn't need to be wrapped in a <form> tag. Move the <div id="MainPanel"> block out of the <form> block, directly under <body>.

<body>
    <div id="MainPanel">
        <sc:placeholder key="main" runat="server" />
    </div>
</body>

Now replace the <sc:placeholder> control with the HTML helper equivalent:

@Html.Sitecore().Placeholder("main")

That's all there is to it. When you're done your Sample MVC Layout.cshtml should look like this:

@using Sitecore.Mvc
@using Sitecore.Mvc.Analytics.Extensions

<!DOCTYPE html>
<html lang="en" xmlns="http://www.w3.org/1999/xhtml">

<head runat="server">
  <title>Welcome to Sitecore</title>
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
  <meta name="CODE_LANGUAGE" content="C#" />
  <meta name="vs_defaultClientScript" content="JavaScript" />
  <meta name="vs_targetSchema" content="http://schemas.microsoft.com/intellisense/ie5" />
  <link href="https://fonts.googleapis.com/css?family=Open+Sans:400,300italic,400italic,600italic,700italic,300,600,700,800" rel="stylesheet" type="text/css" />
  <link href="/default.css" rel="stylesheet" />
  @Html.Sitecore().VisitorIdentification()
</head>
<body>
  <div id="MainPanel">
    @Html.Sitecore().Placeholder("main")
  </div>
</body>
</html>

Use the MVC Layout

Switch back over to the Content Editor. Right click on the original Sample Layout item under \sitecore\Layout\Layouts and click Delete. You'll get a notice about breaking links. This is good--Sitecore sees that other items reference this layout and doesn't want you to break the site.

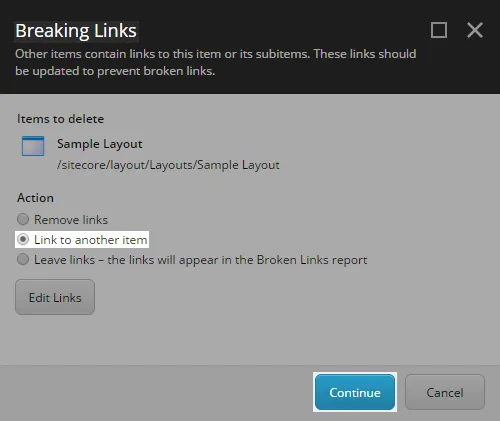

Breaking Links

Click Link to another item and click Continue. Navigate to the Sample MVC Layout you created and click Continue. Sitecore will update all items that referenced Sample Layout and point them to Sample MVC Layout instead.

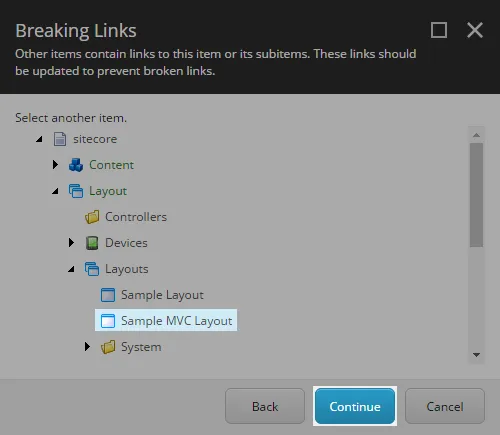

Update Layout Links

All done with the layout!

Convert the Sublayouts to Renderings

Out of the box Sitecore has 3 sample sublayouts: Sample Datasource Sublayout, Sample Inner Sublayout, and Sample Sublayout; and one XSLT rendering: Sample Rendering. These can be found under /sitecore/layout/Sublayouts and /sitecore/layout/Renderings/Sample.

The Sitecore sample site only uses the Sample Inner Sublayout sublayout, the Sample Sublayout sublayout, and the Sample Rendering XSLT rendering. In this section we will convert these into MVC controller and view renderings. I will cover the purpose and conversion of the Sample Datasource Sublayout in a follow-up post.

Convert Sample Sublayout to View Rendering

Sitecore has two types of renderings for MVC components: controller renderings and view renderings. Holy wars have been fought (and are still being fought) in the Sitecore community about which is better. As a general rule of thumb, go with a controller rendering for components that have business logic; otherwise, go with a view rendering.

Sample Sublayout has no business logic so we will convert it into a view rendering.

Create the Sample MVC Sublayout View Rendering

In the Content Editor, expand the Layout node, expand Renderings, right click the Sample folder, and click Insert from template.

In the Insert from Template dialog, drill down to Templates\System\Layout\Renderings and select View rendering. Name the item Sample MVC Sublayout and click Insert.

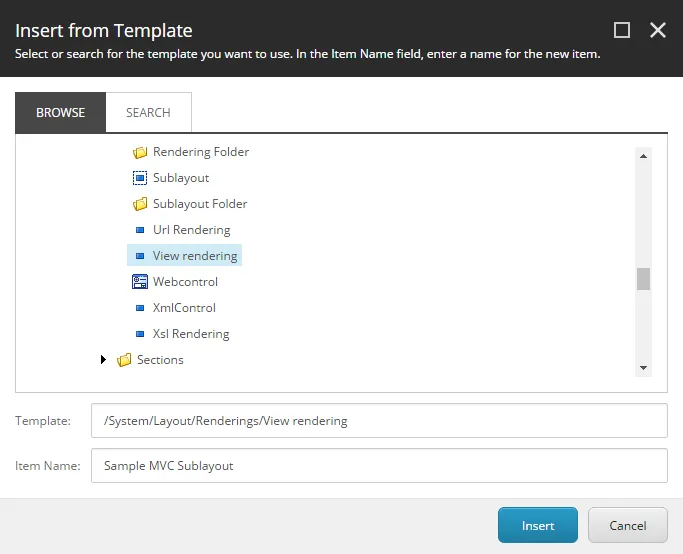

Create Sample MVC Sublayout Rendering

Exercise diligence and select an icon for your new rendering. For consistency I've chosen the same icon as Sample Sublayout: Business/32x32/column.png.

On your rendering, set the following fields:

  • Path: /Views/Sample/SampleMvcSublayout.cshtml
  • Placeholder: content

The Path value will be illuminated in the next section. I copied the Placeholder value from the Sample Sublayout sublayout.

Create the Sample MVC Sublayout View

Switch over to your solution in Visual Studio. Under the Views folder, create a folder called Sample. Create a view in the Sample folder called SampleMvcSublayout.

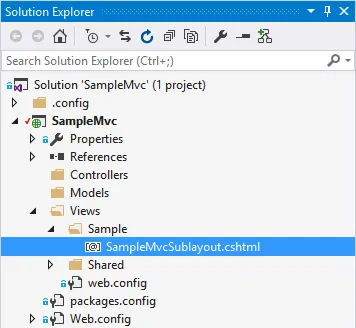

Create Sample MVC Sublayout View

Navigate back to the web root for your Sitecore install (e.g., C:\inetpub\wwwroot\SampleMvc\Website) and open layouts\Sample Sublayout.ascx in your favorite text editor. This is the Web Forms control referenced by the Sample Sublayout that comes with Sitecore out of the box. Copy and paste the contents into SampleMvcSublayout.cshtml in your solution. You can safely delete this file out of your web root now.

Delete the control directive at the top of the view.

<%@ Control Language="c#" AutoEventWireup="true" TargetSchema="http://schemas.microsoft.com/intellisense/ie5" %>

In place of the page directive, add the following line:

@using Sitecore.Mvc

Replace the <sc:placeholder> control with the HTML helper equivalent:

@Html.Sitecore().Placeholder("centercolumn")

When you're done your SampleMvcSublayout.cshtml should look like this:

@using Sitecore.Mvc

<div id="CenterColumn">
  @Html.Sitecore().Placeholder("centercolumn")
</div>

Use the Sample MVC Sublayout Rendering

Switch back over to the Content Editor. Right click on the original Sample Sublayout item under /sitecore/layout/Sublayouts and click Delete. When you get the Broken Links dialog, select Link to another item, and select the Sample MVC Sublayout rendering created above.

Convert Sample Inner Sublayout to Controller Rendering

Sample Inner Sublayout has some business logic, so we will convert it into a controller rendering instead of a view rendering.

Create the Sample MVC Inner Sublayout Controller Rendering

In the Content Editor, expand the Layout node, expand Renderings, right click the Sample folder, and click Insert from template.

In the Insert from Template dialog, drill down to Templates\System\Layout\Renderings and select Controller rendering. Name the item Sample MVC Inner Sublayout and click Insert.

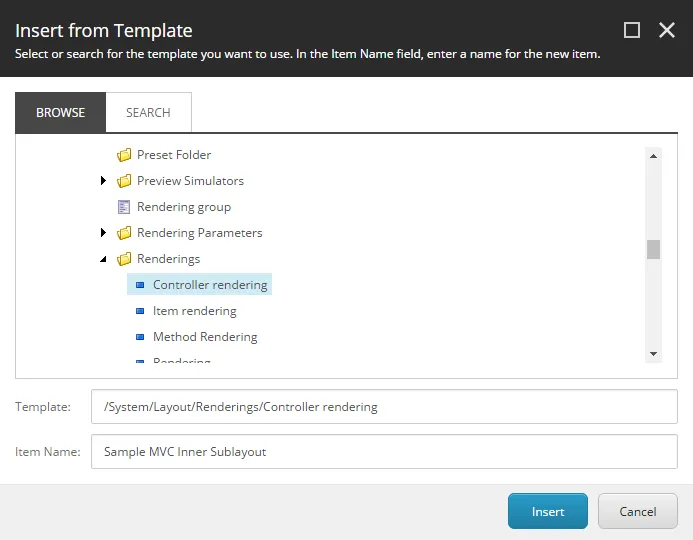

Create Sample MVC Inner Sublayout Rendering

Exercise diligence and select an icon for your new rendering. For consistency I've chosen the same icon as Sample Inner Sublayout: Business/32x32/row.png.

On your rendering, set the following fields:

  • Controller: Sample
  • Controller Action: SampleMvcInnerSublayout
  • Placeholder: content

The Controller and Action values will be illuminated in the next section. I copied the Placeholder value from the Sample Inner Sublayout sublayout.

Create the Sample MVC Inner Sublayout Controller and Model

Switch over to your solution in Visual Studio. Under the Models folder, create a new class called SampleMvcInnerSublayoutViewModel. Give it a single int property called CurrentYear like so:

namespace SampleMvc.Models
{
  public class SampleMvcInnerSublayoutViewModel
  {
    public int CurrentYear { get; set; }
  }
}

Under the Controllers folder, create a new controller called SampleController. Give it a single action method called SampleMvcInnerSublayout like so:

using System;
using System.Web.Mvc;
using SampleMvc.Models;

namespace SampleMvc.Controllers
{
  public class SampleController : Controller
  {
    public ActionResult SampleMvcInnerSublayout()
    {
      var model = new SampleMvcInnerSublayoutViewModel
      {
        CurrentYear = Sitecore.DateUtil.ToServerTime(DateTime.UtcNow).Year
      };

      return View(model);
    }
  }
}

For the purposes of this tutorial, the Sitecore.DateUtil.ToServerTime(DateTime.UtcNow).Year code is considered the "business logic". Frankly, there's no problem with you putting this code directly into the view and skipping the controller rendering altogether. I'm just using this an exercise to introduce you to controller renderings.

In the previous section, we specified the Controller field as Sample and the Action field as SampleMvcInnerSublayout on the controller rendering. Those fields map to the name of the controller and action method created here.

Create the Sample MVC Inner Sublayout View

Under the Views folder, open the Sample folder created previously and create a view called SampleMvcInnerSublayout.

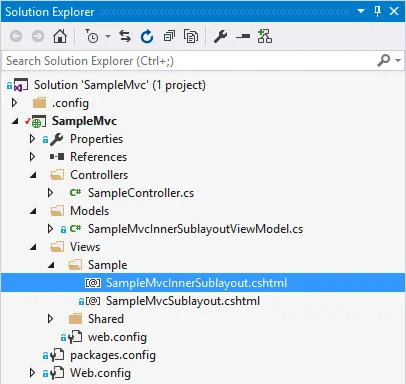

Create Sample MVC Inner Sublayout View

Navigate back to the web root for your Sitecore install (e.g., C:\inetpub\wwwroot\SampleMvc\Website) and open layouts\Sample Inner Sublayout.ascx in your favorite text editor. This is the Web Forms control referenced by the Sample Inner Sublayout that comes with Sitecore out of the box. Copy and paste the contents into SampleMvcInnerSublayout.cshtml in your solution. You can safely delete this file out of your web root now.

Delete the control directive at the top of the view.

<%@ Control Language="c#" AutoEventWireup="true" TargetSchema="http://schemas.microsoft.com/intellisense/ie5" %>

In place of the control directive add the following two lines:

@using Sitecore.Mvc
@model SampleMvc.Models.SampleMvcInnerSublayoutViewModel

Replace the <sc:placeholder> control with the HTML helper equivalent:

@Html.Sitecore().Placeholder("content")

Replace the code render block <%= %> with a reference to the CurrentYear property on the Model:

<div id="Footer"><hr class="divider" />&#169; @Model.CurrentYear Sitecore</div>

When you're done your SampleMvcInnerSublayout.cshtml should look like this:

@using Sitecore.Mvc
@model SampleMvc.Models.SampleMvcInnerSublayoutViewModel

<div id="InnerCenter">
  <div id="Header">
    <img src="-/media/Default Website/sc_logo.ashx" alt="Sitecore" id="scLogo" />
  </div>
  <div id="Content">
    <div id="LeftContent">
      @Html.Sitecore().Placeholder("content")
    </div>
  </div>
  <div id="Footer"><hr class="divider" />&#169; @Model.CurrentYear Sitecore</div>
</div>

Use the Sample MVC Inner Sublayout Rendering

Switch back over to the Content Editor. Right click on the original Sample Inner Sublayout item under /sitecore/layout/Sublayouts and click Delete. When you get the Broken Links dialog, select Link to another item, and select the Sample MVC Inner Sublayout rendering created above.

Convert Sample Rendering to View Rendering

The final rendering we have to convert is the XSLT rendering, Sample Rendering. No holy wars have been fought in the Sitecore community about whether or not you should use XSLT renderings--you shouldn't.

The Sample Rendering has no business logic so we will convert it into a view rendering.

Create the Sample MVC Rendering View Rendering

In the Content Editor, expand the Layout node, expand Renderings, right click the Sample folder, and click Insert from template.

In the Insert from Template dialog, drill down to Templates\System\Layout\Renderings and select View rendering. Name the item Sample MVC Rendering and click Insert.

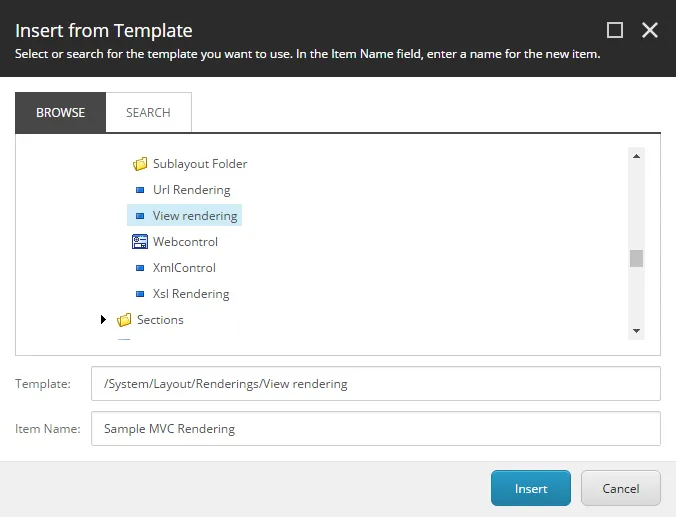

Create Sample MVC Rendering

Exercise diligence and select an icon for your new rendering. For consistency I've chosen the same icon as Sample Rendering: Applications/32x32/text_align_left.png.

On your rendering, set the following fields:

  • Path: /Views/Sample/SampleMvcRendering.cshtml
  • Placeholder: content

The Path value will be illuminated in the next section. I copied the Placeholder value from the Sample Rendering XSLT rendering.

Create the Sample MVC Sublayout View

Under the Views folder, open the Sample folder created previously and create a view called SampleMvcRendering.

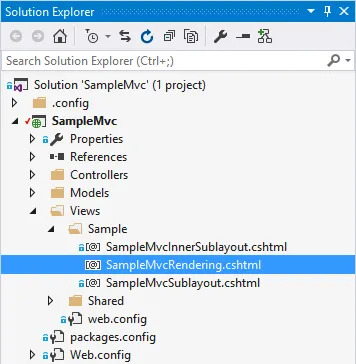

Create Sample MVC Rendering View

Navigate back to the web root for your Sitecore install (e.g., C:\inetpub\wwwroot\SampleMvc\Website) and open xsl\sample rendering.xslt in your favorite text editor. This is the XSLT file used by the Sample Rendering that comes with Sitecore out of the box. Copy and paste the contents inside the <xsl:template match="*" /> node into SampleMvcRendering.cshtml in your solution. You can safely delete this file out of your web root now.

Add the following line to the top of your view:

@using Sitecore.Mvc

Replace the <sc:text> controls with the HTML helper equivalent:

@Html.Sitecore().Field("title")
@Html.Sitecore().Field("text")

When you're done your SampleMvcRendering.cshtml should look like this:

@using Sitecore.Mvc

<div>
  <h1 class="contentTitle">
    @Html.Sitecore().Field("title")
  </h1>
  <div class="contentDescription">
    @Html.Sitecore().Field("text")
  </div>
</div>

Use the Sample MVC Sublayout Rendering

Switch back over to the Content Editor. Right click on the original Sample Rendering item under /sitecore/layout/Renderings/Sample and click Delete. When you get the Broken Links dialog, select Link to another item, and select the Sample MVC Rendering rendering created above.

Publish Everything

Now we just need to publish the code to your Sitecore install and publish all the changes within Sitecore to the web database.

Publish Code

At last the publishing profile we set up in the beginning of this post will come to use. Right click on the SampleMvc project in Visual Studio and click Publish.... On the dialog that pops up click the Publish button. This deploys all your code and views to your Sitecore install.

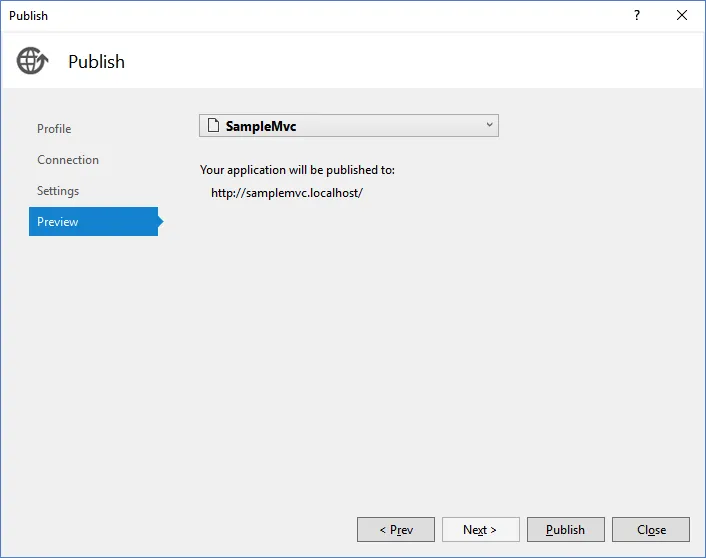

Publish Code in Visual Studio

Publish Sitecore Items

Open up the Content Editor in Sitecore and on the Publish tab click the Publish dropdown and Publish site. Select Smart publish.

Now if you navigate to your site at http://samplemvc.localhost you should see the sample page load. It doesn't look any different than before, but now it's running entirely on MVC.

Summary

You can find all of the code for this blog post on GitHub in my Sitecore.SampleMvc repository.

If you don't want the code and just want the sample site to run on MVC, you can download the Sitecore package from Releases and install that straight into your Sitecore instance.

Did this help you out? Let me know your thoughts in the comments.
